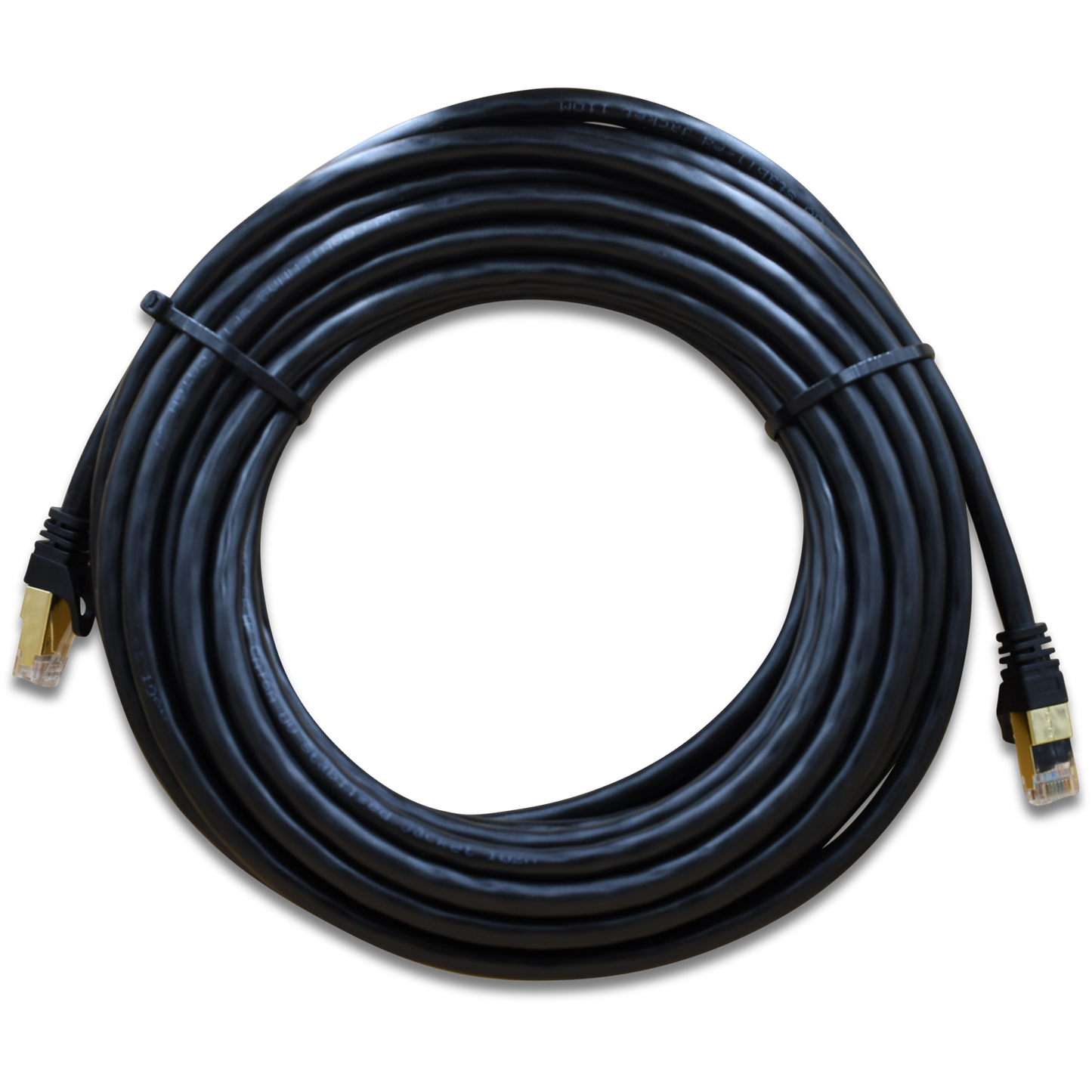

Cat6 Outdoor UV F/UTP 20m Ethernet Cable - ESD Shielded RJ45
Cat6 Outdoor UV F/UTP 20m Ethernet Cable - ESD Shielded RJ45
Couldn't load pickup availability
Telco Wildcat 20m Cat6 Outdoor F/UTP Shielded Ethernet Cable
-
We developed the Wildcat series specifically for outdoor microwave and point to point/multipoint networking
-
It is the only compliant shielded Cat6 outdoor-rated cable available in Australia.
Key Features
-
Tough, thick black UV-stable outer jacket
- 1000BASE-T Certified Category 6
- F/UTP foil shielded twisted pair
- 8P8C shielded RJ45 modular connectors
- Anti-Crosstalk Divider
- TIA/EIA 568-B Wiring
-
ESD drain for outdoor installations
-
Reduced EMI crosstalk and higher SNR.
Usage
-
Protect your network from electronic static discharge, reduce system noise, and improve long distance performance with our WildCat Category 6 F/UTP Ethernet cables
-
Heavily shielded from EMI/ESD and sporting a thick outdoor jacket (6.3mm OD), this cable series is designed for installation in exposed and harsh environments, as well as electrically-noisy indoor environments
-
Wildcat Outdoor Cat6 cables are fully ACMA S008:2010 compliant and can be legally installed under your Open Cabling licence.
Specifications / Frequency
|
Mechanical Specifications |
|
|
Standards |
YD/T 1019-2013, TIA-568-C.2 |
|
Cable Specifications |
4x2x0.56mm |
|
Conductor Material |
BC |
|
Conductor Diameter |
0.56mm (±0.005mm) |
|
Insulation Material |
HDPE |
|
Insulation Diameter |
1.00mm (±0.03mm) |
|
Shielding Material |
ALP |
|
Drain Wire Material |
CCA |
|
Drain Wire Diameter |
0.5mm |
|
Jacket Material |
PE |
|
Jacket Surface |
Smooth, Clean, Shiny |
|
Jacket Colour |
Black |
|
Jacket Thickness |
0.55mm (±0.05mm) |
|
Jacket Diameter |
6.3mm (±0.4mm) |
|
Electrical Specifications |
|
|
Minimum Single Bending Radius |
51mm |
|
1.0-100.0MHz Characteristic Impedance |
100±15 |
|
1.0-100.0MHz Delay Difference (20°C) |
<45ns/100m |
|
DC Resistance (20°C) |
7.00 |
|
Operating Temperature Range |
-20°C to +60°C |
